MLKX

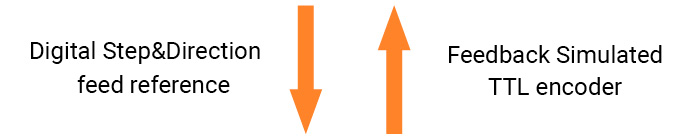

MLKX appeared on the market after the MLK-SOLO CNC, it is its natural evolution proposing the management of commercial drivers via a speed reference that is no longer analog but in Step&Direction.

The new project has kept the mission of the MLK-Solo, that is to make all the advantages and power of the Z32 accessible to the simplest applications and, for this purpose, dedicated inputs have been made available for the potentiometers and an analog reference for the management of an inverter/spindle with the advantage of not being able to install the RIK2 board.

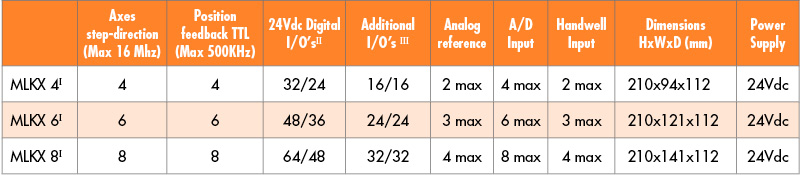

Like the MLK-Solo, the MLKX also effectively competes with the classic PLC+HMI combination, allowing you to also create "Motion Control" applications with the operating comfort and computing power typical of a high-end Z32 CNC. It is possible to define an "all-in-one" Numerical Control equipped "on-board" with I/O and all the resources to manage up to 8 interpolating axes.

The MLKX series as well as the MLK-Solo series can be combined with the Z32 central units and consoles of those in the D.Electron catalogue.

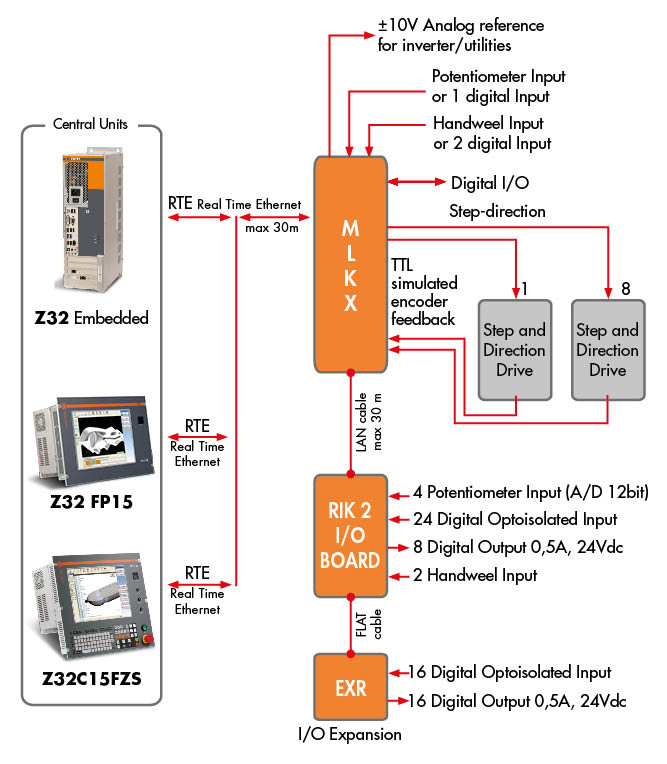

The axes are interfaced to commercial drives via a single cable, which integrates the analog reference and encoder simulation as well as I/O dedicated to communication with the drive. This makes the wiring minimal, therefore economical and reliable.

By the simple and powerful tools for commissioning and maintenance, with integrated Teleservice, it can be commissioned and assisted even by non-expert personnel.

Equipped with a simple and powerful "ZVIS" development tool, it allows you to customize the man-machine interface without having to use an expert programmer, saving time and money.
