PlasmaCUT

PlasmaCUT is an application for the Windows operating system designed, created and marketed by EMSIS Srl specifically for cutting machines that integrate the Z32 D.Electron CNC both in the complete digital package version and in the analog package version.

The communication between PlasmaCUT and Z32 CNC occurs through the proprietary protocol developed by D.Electron named EPS (Easy Protocol Server) which is available on all recent Z32 CNCs and allows the exchange of data and/or commands with external software, via a dialog based on ASCII-coded strings with TCP/IP protocol.

PlasmaCUT acts both as an operator interface and as a programming console for the machining and it can manage various types of cutting technologies:

  • oxy-fuel cutting
  • plasma cutting
  • laser cutting
  • high pressure water jet cutting.

PlasmaCut can manage various accessories including:

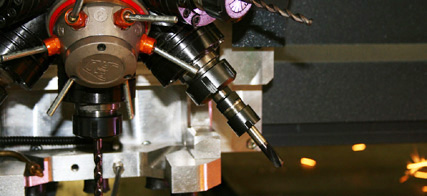

Foratrice mono/multi

Double Torch

3D Beveling

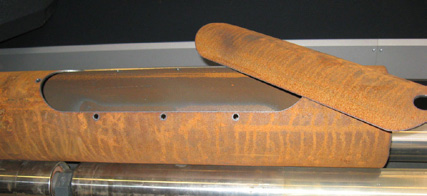

Pipe Cutter
Oxy-fuel
Automatic Gas Console
High pressure pump
Abrasive adjustment


CARATTERISTICHE

Zoom

Ease of use

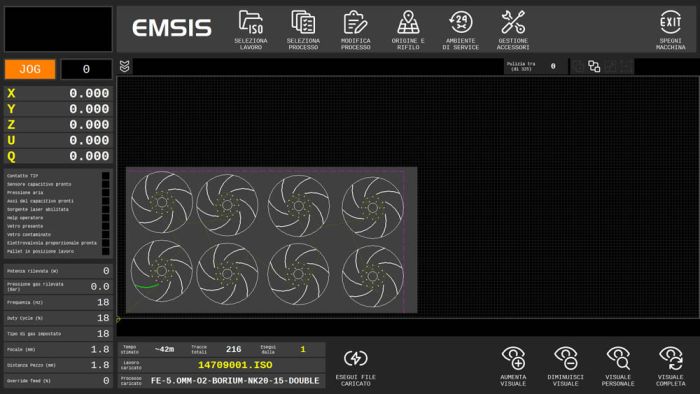

• Easy interface, compact and extremely intuitive, designed for touch-screen use
• Continuous zoom capability, from whole working space to fine details of any path
• Starting path choice: simply clicking the path onn the screen or specifying the path number, it's possibile to easily start the cutting process from any programmed path
• Automatic preview when searching for the program to execute
• Up to 12 piece zeros with automatic or manual alignment feature in case of sheet metal non perfectly aligned with the machine
Zoom

Torch height control

• Integrated torch height control (switchable on/off by the operator) grants a perfect cutting quality

Zoom

Parameters

• Default cutting parameters  available for most used plasma sources: the operator only needs to select material, thickness and technology
• Cutting parameters are adjustable also while cutting in real-time
• Software compensation of axes mechanical misalignament

Zoom

Execution/Simulation

• Simulation feature is a uinque tool available for testing a program
• Availability of a powerful cutting restart algorithm in case of accidental torch-sheet metal contact or in case of cutting interruption with automatic piercing point calculation on the scrap portion
• CAD-CAM compatibility for Lantek, Alma, SigmaNEST, SI, Taglio, CutExpert and others
• Easy sheet metal trimming feature
