Configuration 9

Configuration 2
Configuration 1

Configuration 1

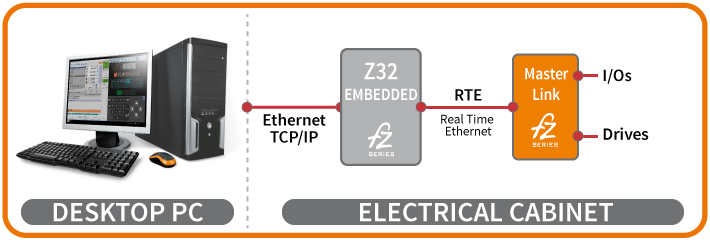

CNC inside the electrical cabinet and desktop PC with Z32 for Windows installed in console
Configuration 1
Configuration 2

Configuration 2

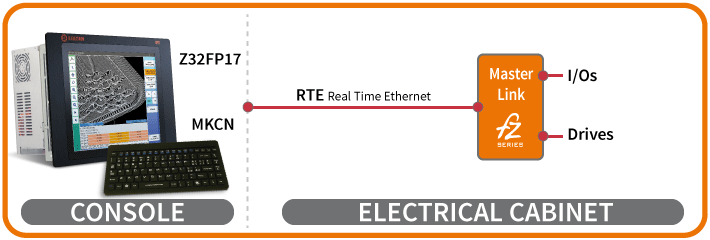

Touch Screen CNC in console, full-travel qwerty mini keyboard IP67
Configuration 2
Configuration 3

Configuration 3

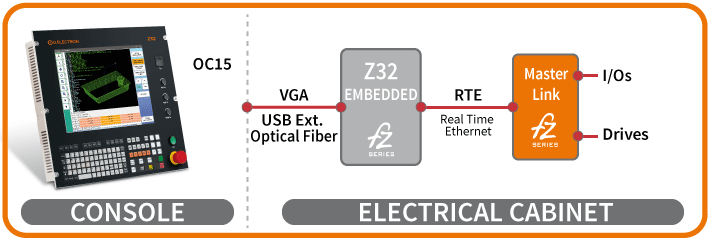

CNC inside the electrical cabinet and small thickness "all-in-one"  operator panel in console
Configuration 3
Configuration 4

Configuration 4

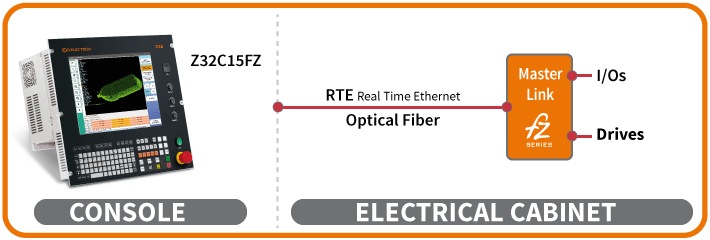

CNC in console with "All-in-One" operator panel equipped with Touch Screen monitor, keyboard and machine pushbutton panel
Configuration 4
Configuration 5

Configuration 5

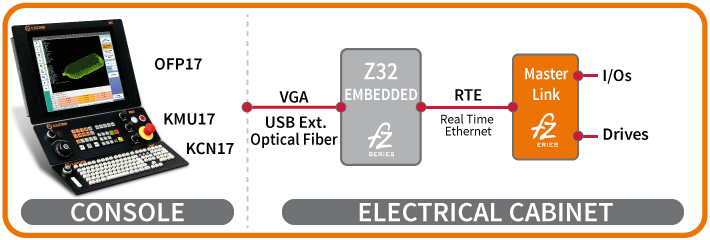

CNC inside the electrical cabinet,thin Touch Screen panel,machine pushbutton and full-travel qwerty keyboard in console
Configuration 5
Configuration 6

Configuration 6

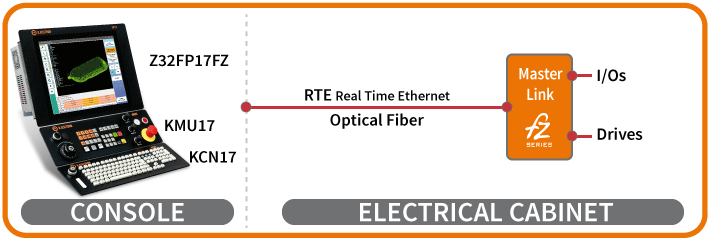

CNC with Touch Screen panel in console and machine pushbutton and full-travel qwerty keyboard
Configuration 6
Configuration 7

Configuration 7

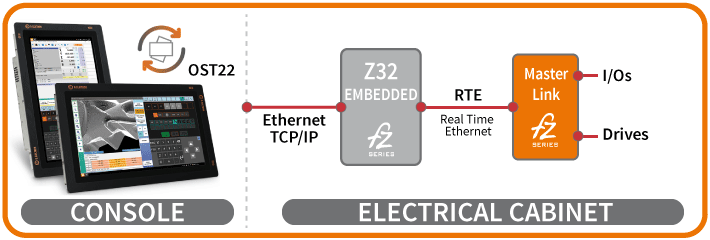

CNC inside the electrical cabinet, thin multitouch O.S. Windows with virtual machine pushbutton and keyboard in console
Configuration 7
Configuration 8

Configuration 8

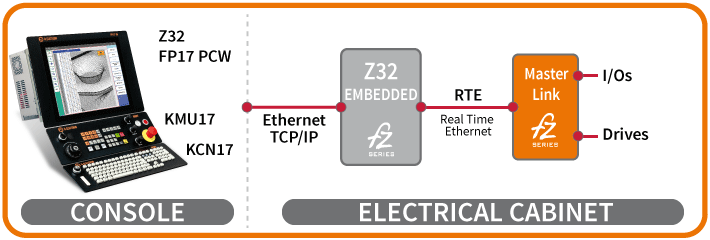

CNC inside the electrical cabinet, O.S. Windows PC with Touch Screen panel, machine pushbutton and full-travel qwerty keyboard in console
Configuration 8
Configuration 9

Configuration 9

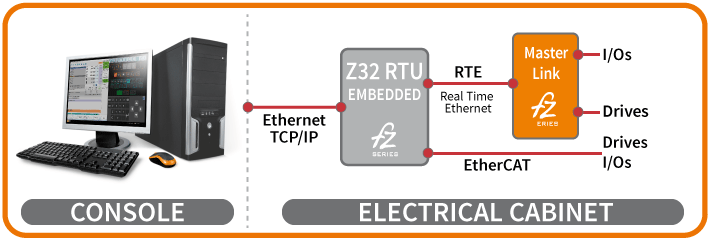

CNC in electrical cabinet, console created by installing Z32 for Windows in the front end PC provided by the machine manufacturer
Configuration 9
